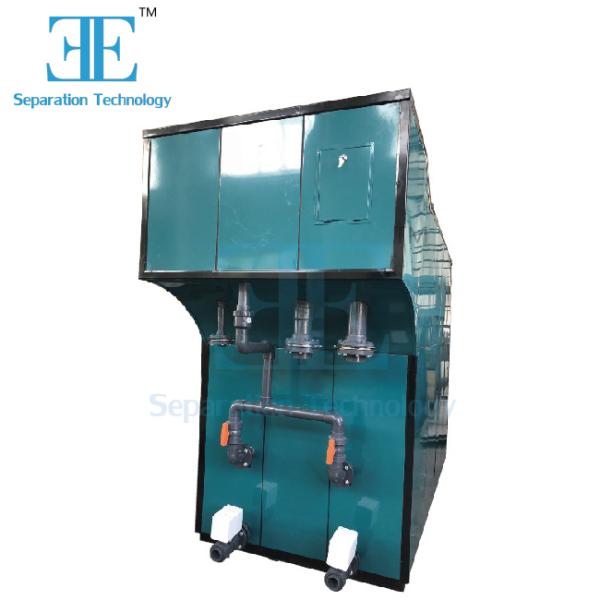

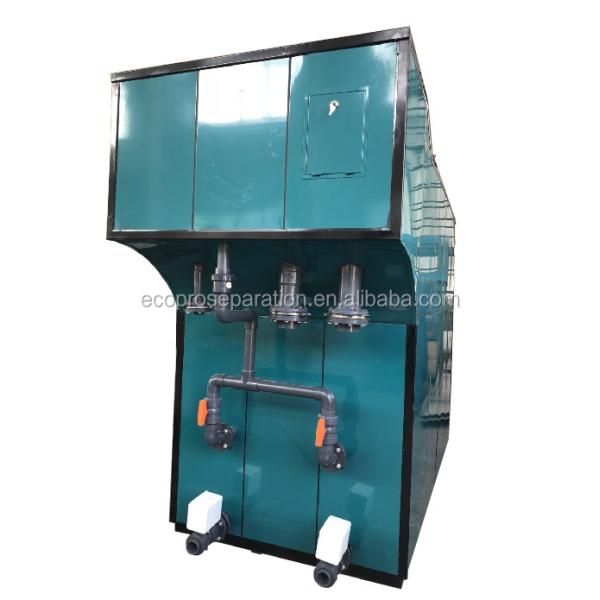

5m3/h Automatic Electrocoagulation Wastewater Treatment System

Name: 5m3h Automatic Electrocoagulation Wastewater Treatment System
Brand: ECOPRO
Price: 36 USD

China 5m3/h Automatic Electrocoagulation Wastewater Treatment System wholesale

Place of Origin : Shanghai, China

Brand Name : ECOPRO

MOQ : 1

Price : $36,897

Productivity : 5m3/h

Weight : 1900 kg

Processing Type : filtration

Power : 1kW

Voltage : 220V, 380V, 110V

Capacity : 5m3/h

Electrode Weight : 1900kgs

Empty Weight : 1900kgs

Operation Weight : 7800kgs

Core Components : motor

Power Supply Range : 220V-480VAC

Anode Material : aluminum, iron

Current Adjustment : automatic

Voltage Adjustment : automatic

Protection Features : phase loss, overload, overcurrent, overvoltage, zero voltage

Contact Now

Product Description

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment

Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

5m3/h Automatic Electrocoagulation Wastewater Treatment System

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e

Anodizing reaction: 2OH-→2[O]+2e→02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

1. Wide adaptability of power supply: 220V-480VAC range is available.
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.);
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

Electrical Flocculation System Work Site for Reference
